Create new Catalyst SD-WAN security objects and security profiles

This task enables you to create security objects and profiles for network protection and policy enforcement in your Catalyst SD-WAN environment.

Use Security Cloud Control Firewall Management to create new Catalyst SD-WAN security objects and security profiles.

Procedure

Step 1

Choose Objects.

Step 2

Click the WAN Branch Edge tab.

Step 3

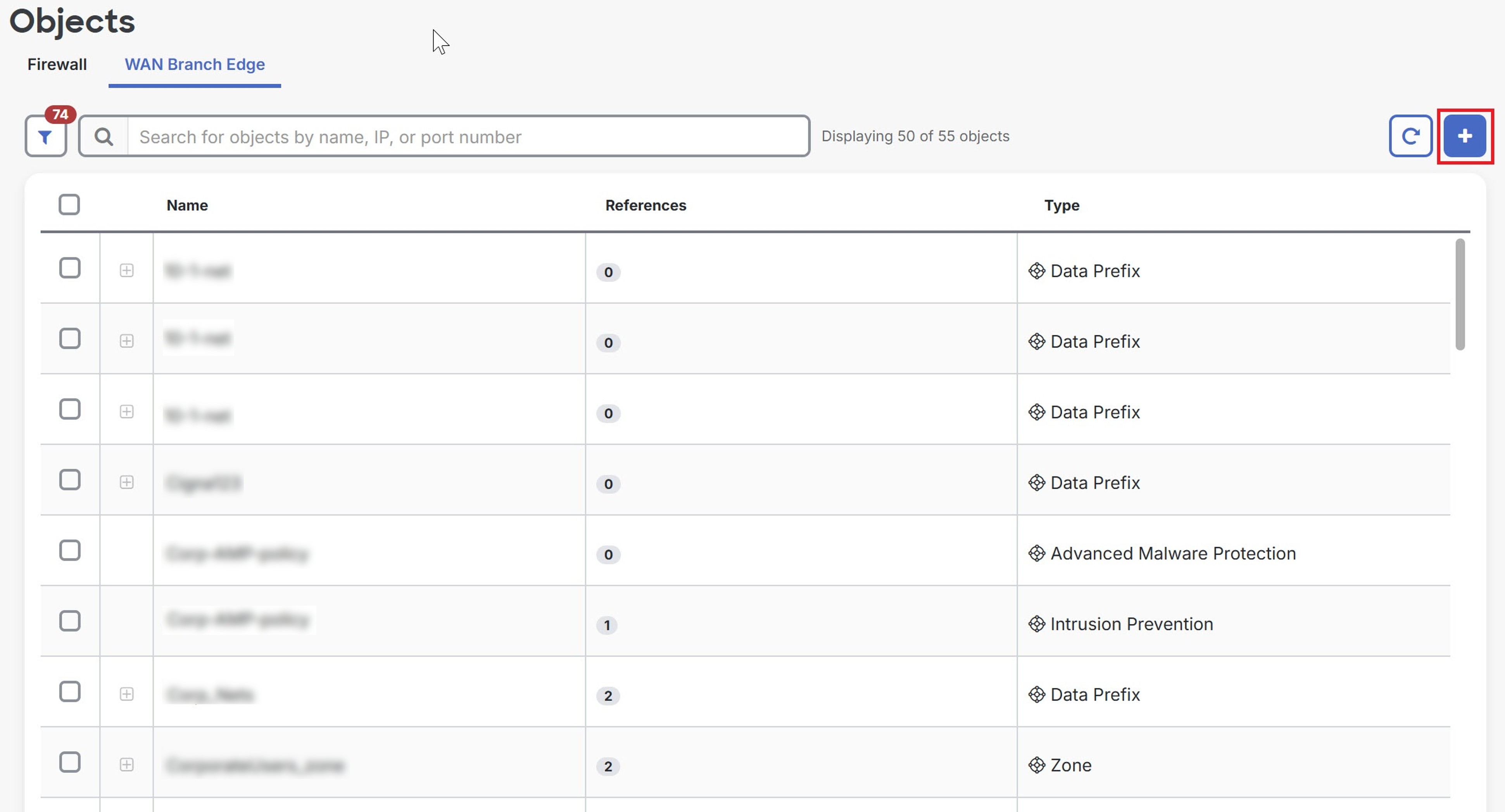

Click the Create Object (The image illustrates the process of creating new security objects and security profiles within an application list, highlighting key steps and options available in the interface.) icon.

Objects page showing the Create Object plus button to create a new object.

Step 4

Click the object or profile you want to create:

Objects:

Profiles:

Step 5

Click Save.

The objects are created in Security Cloud Control Firewall Management. To see the logs in Catalyst SD-WAN Manager, navigate to Monitor > Logs > Audit Logs.
